Luminaire
Where are lighting-control nodes connected and what supports them?
Explore LuminaireA lighting-control node appears in the estate without a clear network attachment.
Lighting and network teams need a shared record of a supported node and its physical connection before they can investigate support or inventory questions.
A lighting node appears in the venue network with no clear physical path. Luminaire relates discovered lighting-control evidence to the switch port that supports the node.
Give lighting and network teams a shared starting point for supported nodes.
- Discover supported lighting-control nodes and show the network attachment evidence CrossConnect can collect.
- Present protocol and product-access context without sending lighting commands.
Trace lighting-control evidence back to its network attachment.
- Discovers supported lighting-control nodes and their network attachment.
- Shows protocol and product-access evidence without sending lighting commands.
Demo controls are loading.
Open Luminaire in the record.
Open the resulting view, then review the evidence and the next safe action beside it.

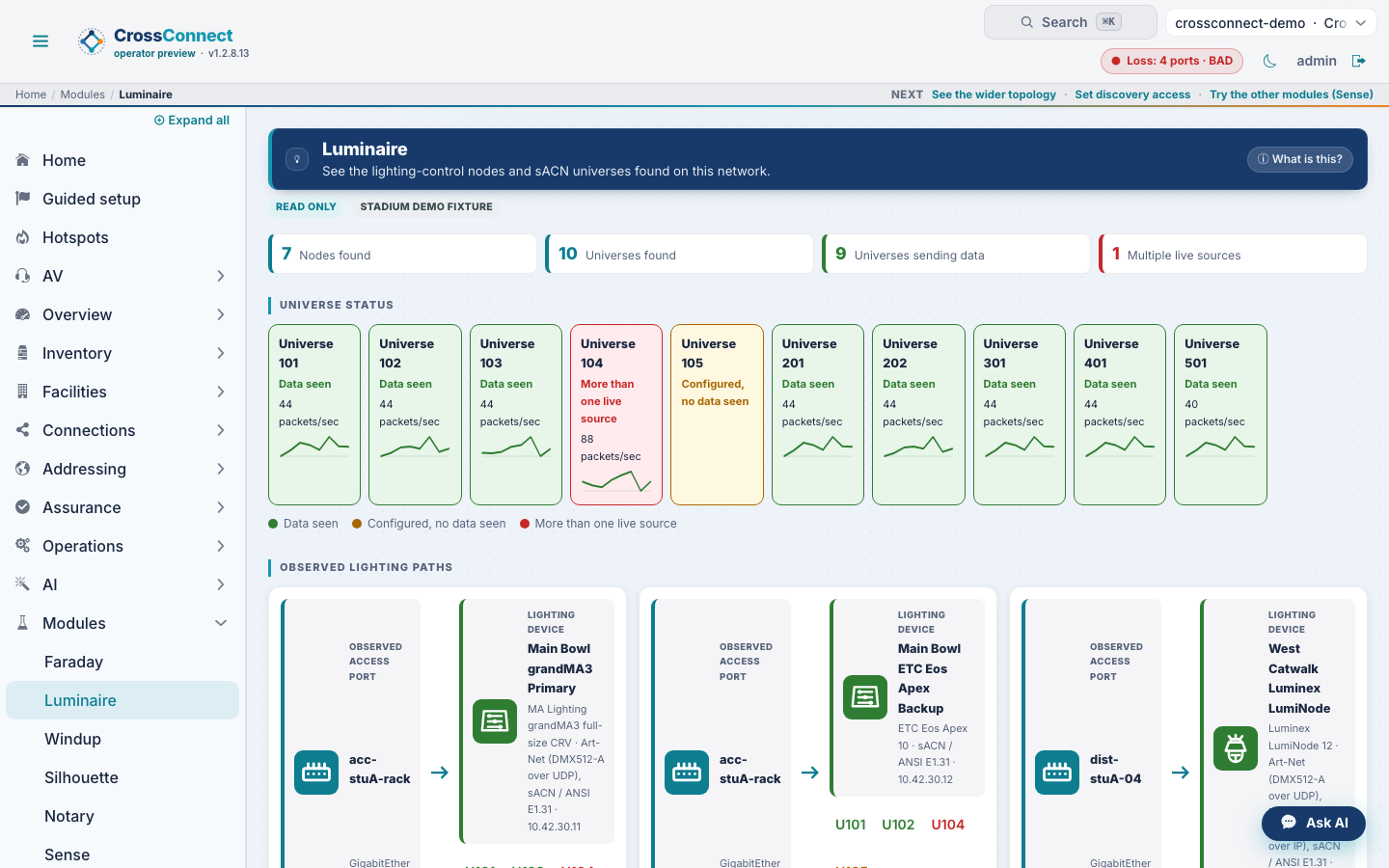

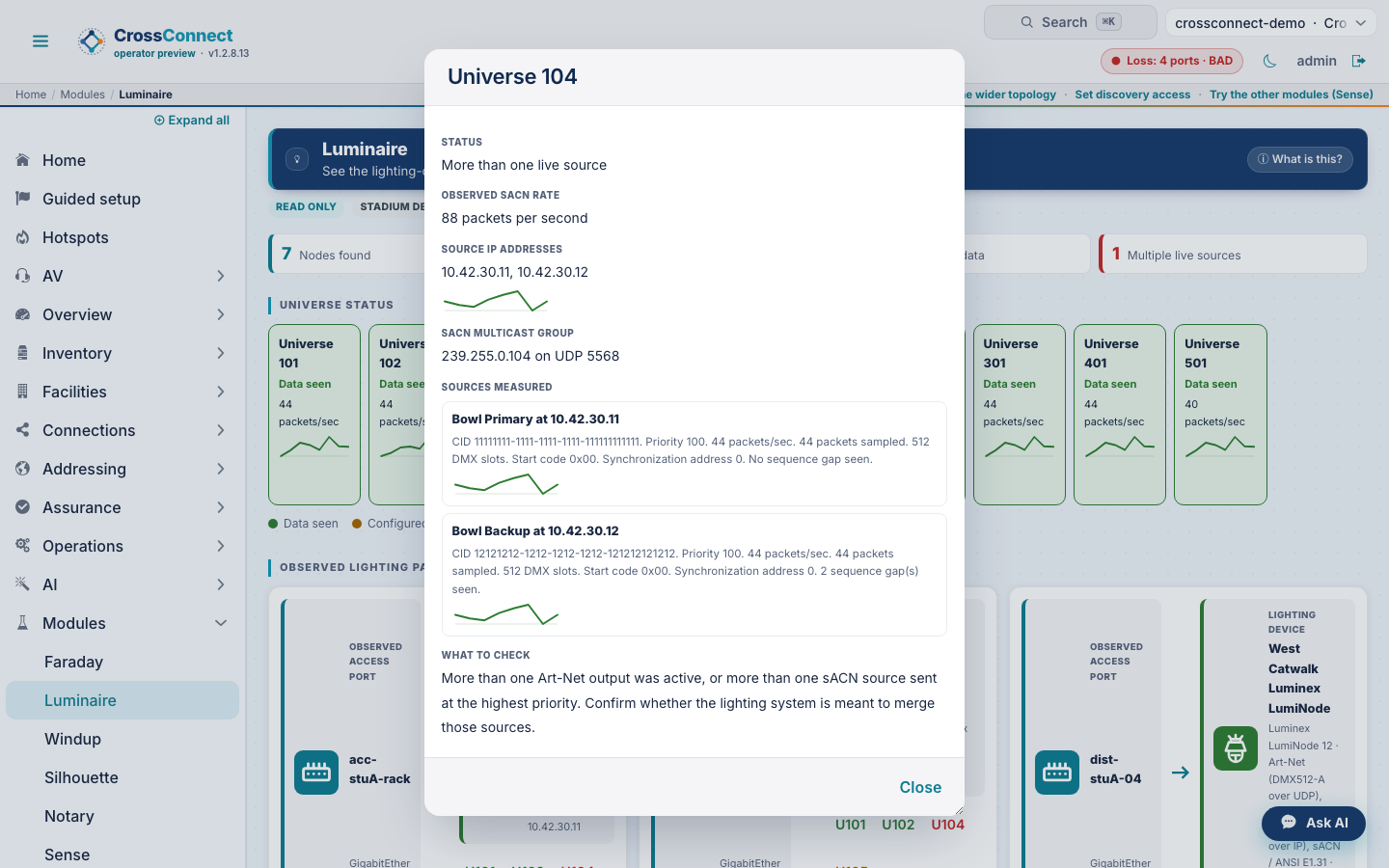

Selected lighting universe and observed data sources
Discover supported lighting-control nodes and show the network attachment evidence CrossConnect can collect. Present protocol and product-access context without sending lighting commands.

Evidence and interpretation
Discovers supported lighting-control nodes and their network attachment. Shows protocol and product-access evidence without sending lighting commands.
- The supported lighting-control node and its protocol and product identity.
- The discovered network attachment and the supporting switch-port context.
- The selected node’s record beside the wider lighting-control inventory.
Investigation steps
- Start with the lighting node named in the support request.
- Compare its protocol and identity with the discovered network attachment.
- Use the supporting port as the shared starting point for the lighting and network teams.
Verify the result
- Confirm that the discovered node and the physical switch-port record describe the same equipment.
- Recheck the node record after the support investigation and retain the relevant attachment context.
Scope of the conclusion
Luminaire is read-only. Coverage is limited to supported protocols and the evidence discovered on the network.
